Tin can paint can seam welding production line

Tin can paint can seam welding production line

Product Description



Tin can paint can seam welding production line

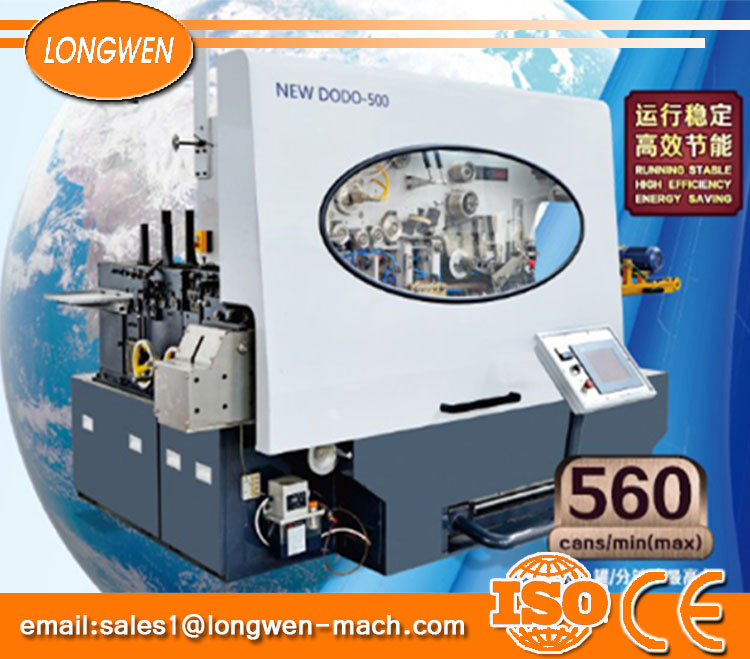

NEW DODO-500 is the automatic can body welding machine specially designed to manufacture the metal can body. Adopting the modern electronic technology to completely realize mechanical and electrical integration, which consists of can round forming, welding and coating in a machine.

Product name
Can body welding machine
Model
NEW DODO-500
Welding Speed
65m/min(max)
Production Speed
Max. 560cans/min
Welding Points Distance
0.5~0.85mm
Overlap
0.20~0.4mm
Sheet thickness
0.14~0.28mm
Can Inner Diameter
52~99mm
Can Height
50~150mm
Material
Tinplate, Ni plate
Hardness
T2.5~DR8
Copper Wire
1.20~1.38mm
Welding Frequency
250~850Hz
Compressed Air
>800L/min , >0.5MPa
Coolong Water
>0.4MPa , ≤20℃, 720L/min
Power Supply
380V, 50HZ, 45KW


Main feature:

♥ Equipped with the most advanced man-computer interface device, the whole operation can be made on the touch screen.
♥ Equipped with Schneider Electric Control System for all electrical elements and Servo Motor Control System.
♥ Equipped with adjustable electronic static inverter power supply.
♥ Equipped with failure self-detected system, system arlarms automatically and provides the solution proposal.
♥ With 4G remote access control function, the device for remote troubleshooting and real-time production monitoring.

Rolling coating or spraying coating is for your option for outside coating.

Equipped with copper-wire profiling roller in ceramic, improve the insulation quality and lower the consumption.

Equipped with the very durable ceramic unit on the can conveying system to reduce wear out.
Equipped with the standard mercury lower welding roller, non-mercury welding roller also available as a option.

Lower welding arm available for both internal powder coating and internal lacquer spraying coating with Nordson pump.

Induction oven is available for the can line, it is able to save over 90%of energy when comparing to the gas oven.
