1Ton capacity Skid Steer Loader

1Ton capacity Skid Steer Loader

    Payment Type: L/C,T/T,D/P,Western Union
    Terms of Trade: FOB,CFR,CIF,EXW,FCA,CPT,CIP
    Min. Order: 1 Set/Sets
    Delivery Time: 10 Days
    Packaging: Nud in FCL
    Productivity: 100Sets/Month
    Brand: HengWang
    Transportation: Ocean
    Place of Origin: China
    Supply Ability: 100Sets/Month
    Certificate: ISO:9001/ ce
    Port: Qingdao,Shanghai,Guangzhou

Basic Info

Model No.: HW-HS70

Product Description

Product Description



HW Series Skid Steer Loader

HW-HS70 SKID STEER LOADER


The skid steer loader is one of the world's most popular small construction machines, and with its flexible steering, compact body and interchangeable multi-function accessories, it is easy to complete a variety of comprehensive construction needs. 7 series and more than 30 models, with more than 80 accessories to choose from, the product covers medium, high and low end, its unique The shape design, reliable performance, comfortable and convenient operation and easy
Features:


1 Strong and Efficient Power Transmission System
The renowned brand engine equipped features strong power, ultra-low emission, and higher fuel efficiency.
2 Solid and Reliable Design
The integral frame adopted features compact structure and high firmness and reliability.
3 Flexible Operations
Compact structure, low turning radius, and strong site adaptability.
The quick-change coupling equipped can change attachments rapidly in the construction site.
The bucket can automatically maintain level status during lifting to prevent scattering of material and improve working efficiency.
4 Various Multi-Functionalities
The international interchangeable quick-change coupling enables the change many of attachments, including sweeper, planer, breaking hammer, and ditcher, pallet-fork ,mini-excavator rapidly and conveniently.
5 Safe and Comfortable Operating Environment
The ROPS&FOPS cab and the seat belt, bumper, fire extinguisher, and safety hammer equipped guarantee the personal safety of the operator. The cab features large space, adjustable seats, and com fortable operations.
6 Convenient Maintenances
As long as open the back cover and the upper cover and lift the cab,all units and pipelines are easily accessible to save the repair and maintenance labor and time ,meanwhile you can complete all inspection and filling work ,including the engine


Parameters
HW-HS70: Specifications
Rated operating capacity
700 KG
Tipping load
1400 KG
Bucket capacity
0.5 CBM
Operating weight
3000 KG
Max. travel speed
12 KM/H
Hydraulic pump flow
75 L/MIN
Fuel tank capacity
70 L
Tires
10/16.5NHS
Overall dimensions
3350×1720×2050 mm
Dimensions
Height at maximum extension
3980 mm
Height to bucket hinge pin
3080 mm
Width with bucket
1730 mm
Track width
1450 mm
Wheelbase
991 mm
Ground clearance
180 mm
Dump angle
30°
Dumping height
2380 mm
Rollback at ground
26°
Angle of departure
20°
Engine:
Power
Diesel - 51hp/2500rpm
Type
4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine
Displacement
2.7L
Standard:
Deluxe enclosed operator cab
Hand control system (Mechanical type)
Standard bucket (0.5CBM)
Auxiliary hydraulic couplers
air conditioner
Optional:
Pre heat starting assist system for extreme cold weather
solid tyre
All kinds of Accessories, Like: Excavator arm, Tree mover, pavement miller, snowplow, vibratory roller, driller ......
Detailed Images
Skid steer loader

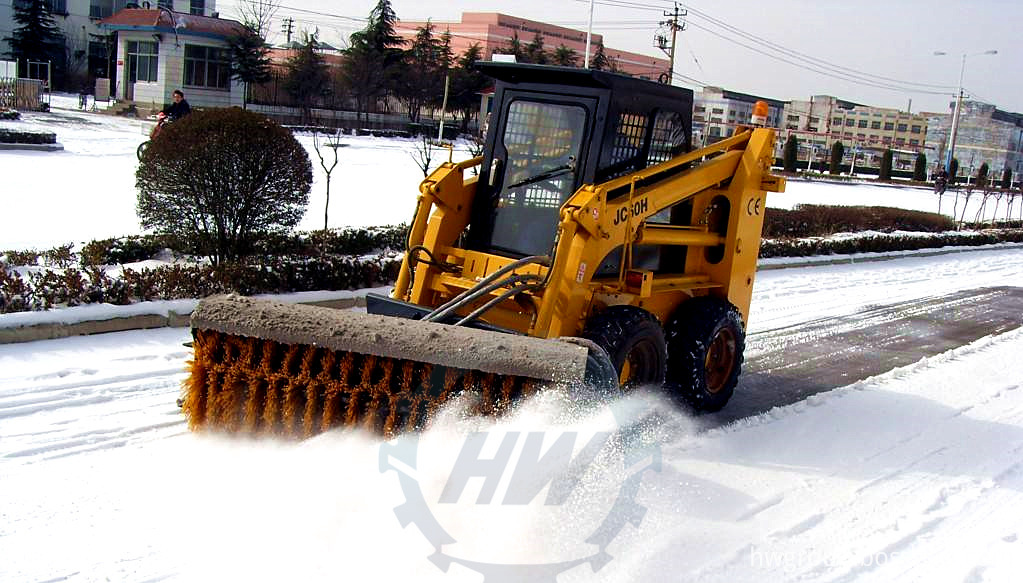

Skid steer loadersnowplow loader

Milling machine

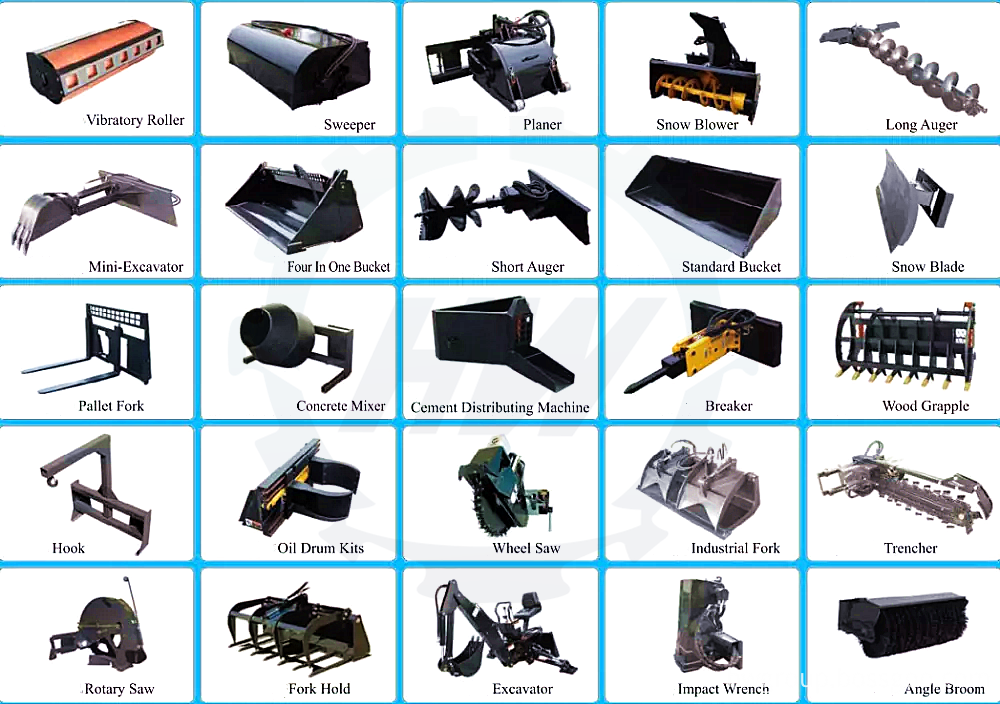

Optional Accessories

Vibratory Roller Sweeper Planer

Snow Blower Long Auger Excavator Arm

Four in one Bucket Short Auger Concrete Mixer

Standard Bucket Snow Blade Pallet Fork

Cement Distributing Machine Breaker Wood Grapple

Hook Oil Drum Kits Wheel Saw

Industrial Fork Trencher Rotary Saw

Fork Hold Excavator Impact Wrench

Angle Broom Moving tree machine Hydraulic rammer

Rotary cultivator Garden rake Pile driver

Loader Accessories
